- For ANSI Chain Size 35
- Standard Offset Roller Chain Link
- Pitch 0.375

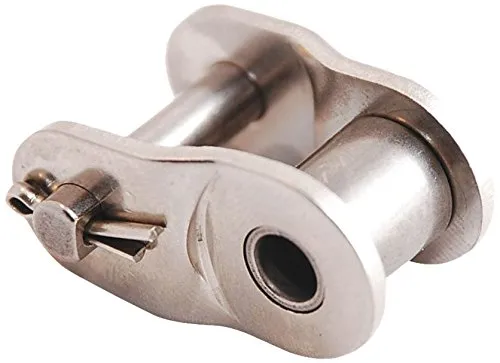

Offset Roller Chain Link, Standard, ANSI Chain Size 35, Pitch 0.375 In, Roller Bushing Width 0.188 In, Overall Width 0.500 In, Pin Link Plate Thickness 0.050 In, Roller Link Plate Height 0.354 In, Inside Pin Diameter 0.141 In, Outside Pin Diameter 0.141 In, Pin Length 0.500 In, Rivet End to Center Line 0.230 In, Connecting End to CL 0.270 In, Max Allowable Load 60 Lb, Length 0.375 In, Temp Range -40F - 750F, 304 Stainless Steel Material.
- Package Dimensions : 2.28 x 2.08 x 0.35 inches; 0.11 ounces
- Date First Available : February 4, 2015
- Manufacturer : US Tsubaki
