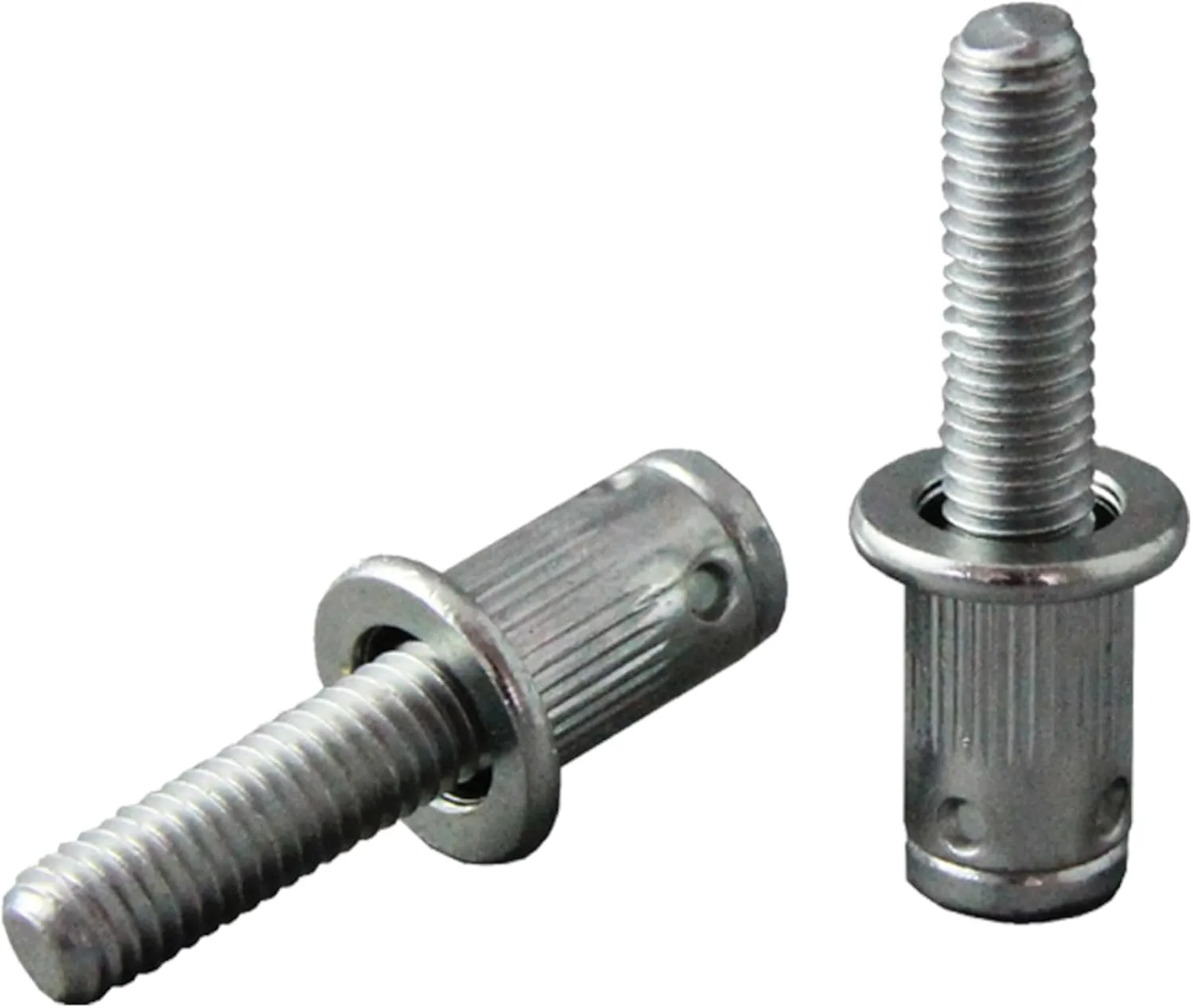

- Zinc plated steel rivet stud. Leaves a male stud when set to be able to hang and mount parts onto, install with rivet stud tool like Astro model# 1455
- Thread Pitch: #1/4-20
- Outside Diameter: 8.9mm
- Drill Hole Size: 9mm (23/64”)
- Length: 13.7mm
The Astro Tools RS14 50pc 1/4-20 Steel Rivet Studs are zinc-plated steel rivets with a #1/4-20 thread pitch. They have an outside diameter of 8.9mm and require a 9mm (23/64") drill hole. With a length of 13.7mm and an overall length of 27.5mm, these rivets are designed for heavier-duty fastening applications.
