- Type: Round Dome Head Open End Aluminum Blind Pop Rivet
- Material: Made of high quality aluminum alloy, never rust, good anti-corrosion property, sturdy, light, durable and long life.

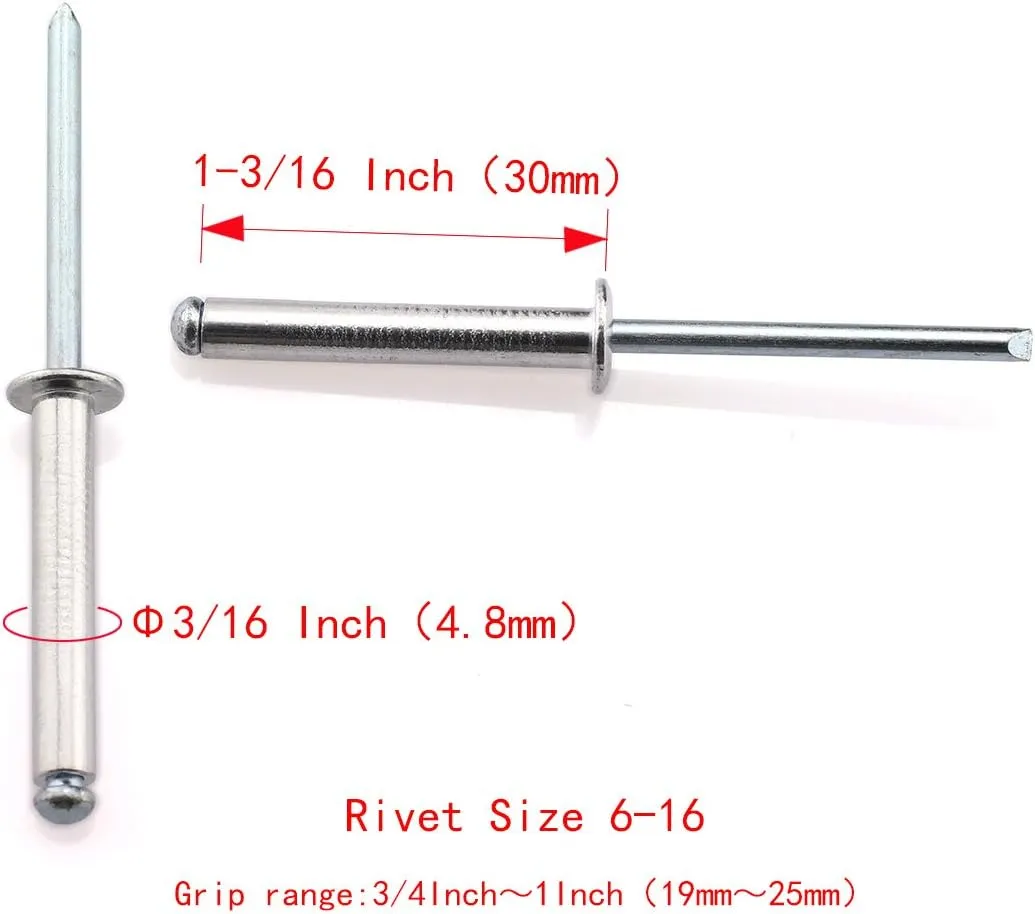

- Head Size: Diameter 3/16"(4.8mm), Length: 1-3/16"(30mm). Grip Pange: Diameter 3/16"(4.8mm), Length: 3/4"-1"(19-25mm)
- Applications: Widely used in construction, automobile, ship, aircraft, machinery, electric equipment, furniture, etc. Especially suitable for the riveting occasions where is not convenient to adopt ordinary rivet.
- Package: 120pcs Aluminum Blind Rivets
Description:
High quality aluminum rivet, with good performance of anti-rust and anti-corrosion, sturdy and durable. It is a kind of rivet that is fixed by core-pulling inflation, can be widely applied to indoor or outdoor for plate splicing, object fastening etc. Installed with rivet gun, convenient to use.
Name: Blind Rivet
Material: Aluminium Alloy
Type: Open End
Design: Dome Head
Head Size: Diameter 3/16"(4.8mm), Length: 1"-3/16"(30mm)
Riveting Size: Diameter 3/16"(4.8mm), Length: 3/4"-1"(19-25mm)
Color: Silver Tone
Insert Tool: Automatic riveting machine, rivet bucker, and rivet gun.
Applications: Suitable for joining plastics, rubber, wood, grip and laminates, is used in assembly of caravans, trailers, furniture, plastic-framed window body.
How to Use:
The rivet assembly is inserted into a hole drilled through the parts to be joined and a specially designed tool is used to draw the mandrel into the rivet.
This expands the blind end of the rivet and then the mandrel snaps off.
These types of blind rivets have non-locking mandrels and are sometimes avoided for critical structural joints because the mandrels may fall out, due to vibration or other reasons, leaving a hollow rivet that has a lower load-carrying capability than solid rivets.
The blind rivets are mainly used when access to the joint is only available from one side.
Note:
Manual measurement allowed tiny reasonable error.
